Inova
is Known for State-of-the-Art Syringe Processing
Equipment
When it comes to state-of-the-art syringe filling
machines, the name inova is predominant. Dosing
accuracy, high outputs, easy size part changes,
cGMP design, high quality components – inova
is unquestionablyone of the leading manufacturer
in this industry. We put all our energy into making
the filling and closing of syringer safer, faster,
and more economical. Innovative solutions to process
bulk syringes are only one example. |
Time
for special requests
Inova offers you two different machine concepts:
the modular design principle and the customized
design principle. This will allow you to benefit
from the advantages of our machine concept without
sacrificing your individual needs.
The modular design principle:
You select your machines using our standardized
modular design feature. We offer you a variety
of modular standardized solutions to meet your
requirements.
The customized design principle:
Of course, not all requirements can be met with
the modular design principle. In this case you
will work with our application specialist. Together
we will find an individual solution which is tailored
to your exact needs. |
|
We can provide you with all the equipment you
need:
FILLING AND CLOSING, For medium output - Type SV 125
FILLING AND CLOSING, Technical Data Filling and Closing
DENESTING, Denester to Process Syringes
DENESTING, Technical Data Denester Tubs
DENESTING, Technical Data Denester Rondo Trays
LABELLING / PLUNGER, Continuous or Intermittent
BACKSTOP ASSEMBLY, Technical Data
SYRINGE ACCUMULATOR, Syringe Accumulator
All You Need for Vials and Bottles – From Washing
Machines to Filling and Closing Machinery
inova can provide you with all the equipment you need:
washing, sterilizing, sterile filling and closing machines
for vials and bottles. This ensure a trouble-free operation
and avoidance of safety gaps.

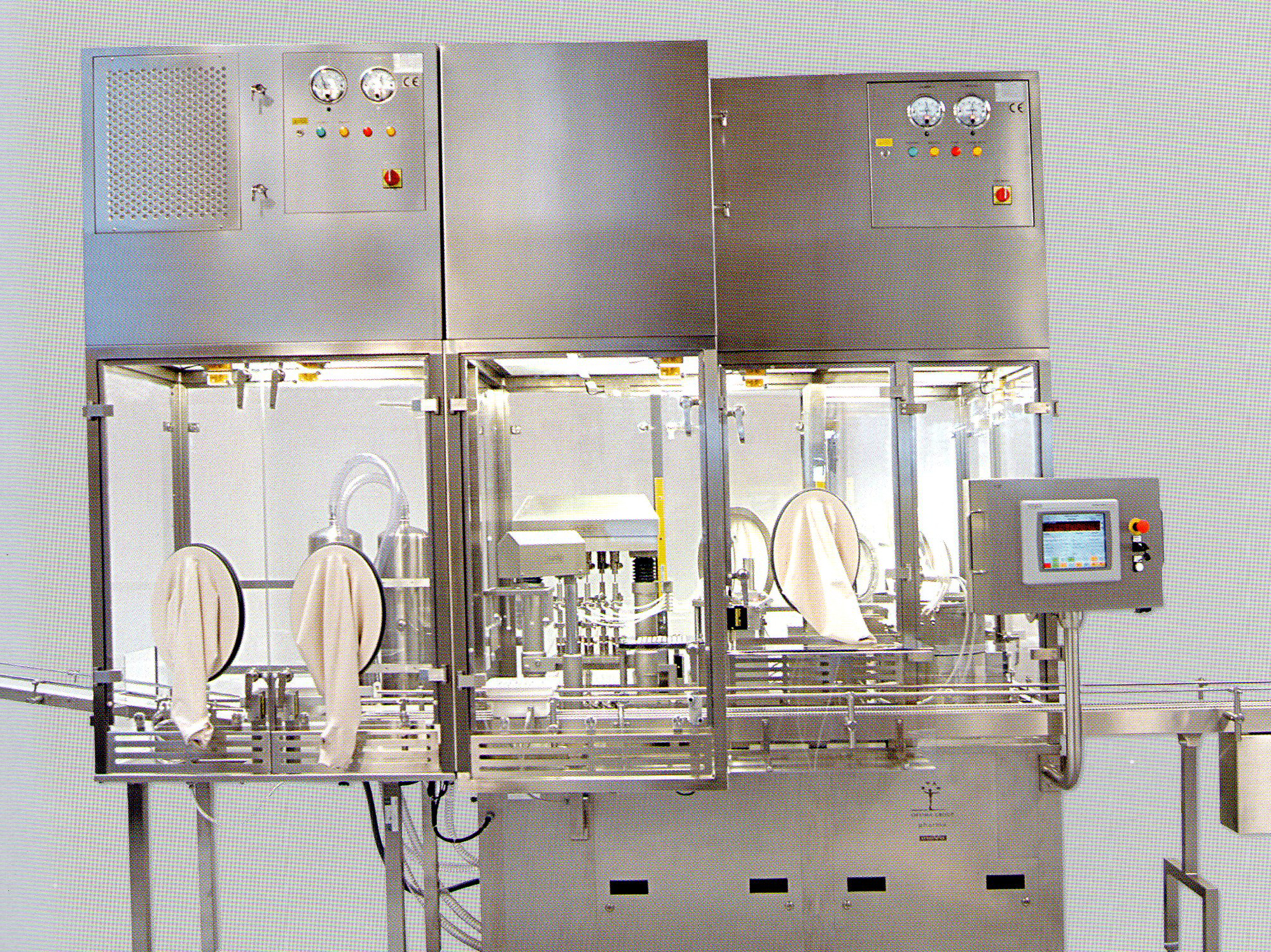

FILLING AND CLOSING, For medium output - Type SV 125
Fully automatic filling and closing machine for nested disposable syringes of all leading syringe suppliers. Format range up to 50 ml. An output up to 10,000 syringes/hour can be reached with the 5-lane model. High dosing accuracy is achieved by means of servo driven rotary piston pumps and therefore individual adjustment of dosing characteristic depends on the product. Nested vials can also be processed easily on the SV 125. The SV 125 is also available for use with isolator technology, vacuum filling and stopper insertion.
Main Characteristics
Advantages

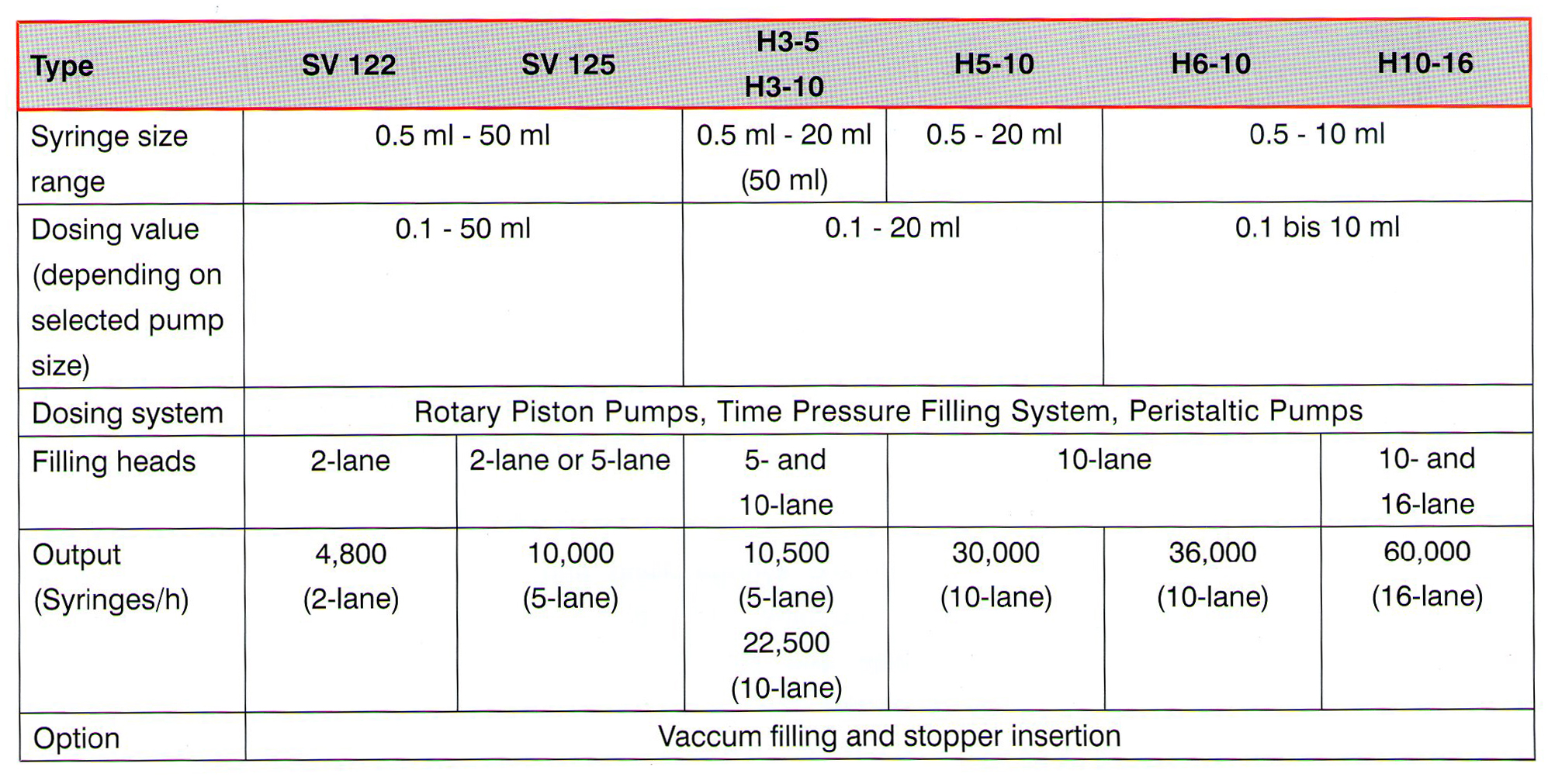

FILLING AND CLOSING, Technical Data Filling and Closing
DENESTING, Denester to Process Syringes

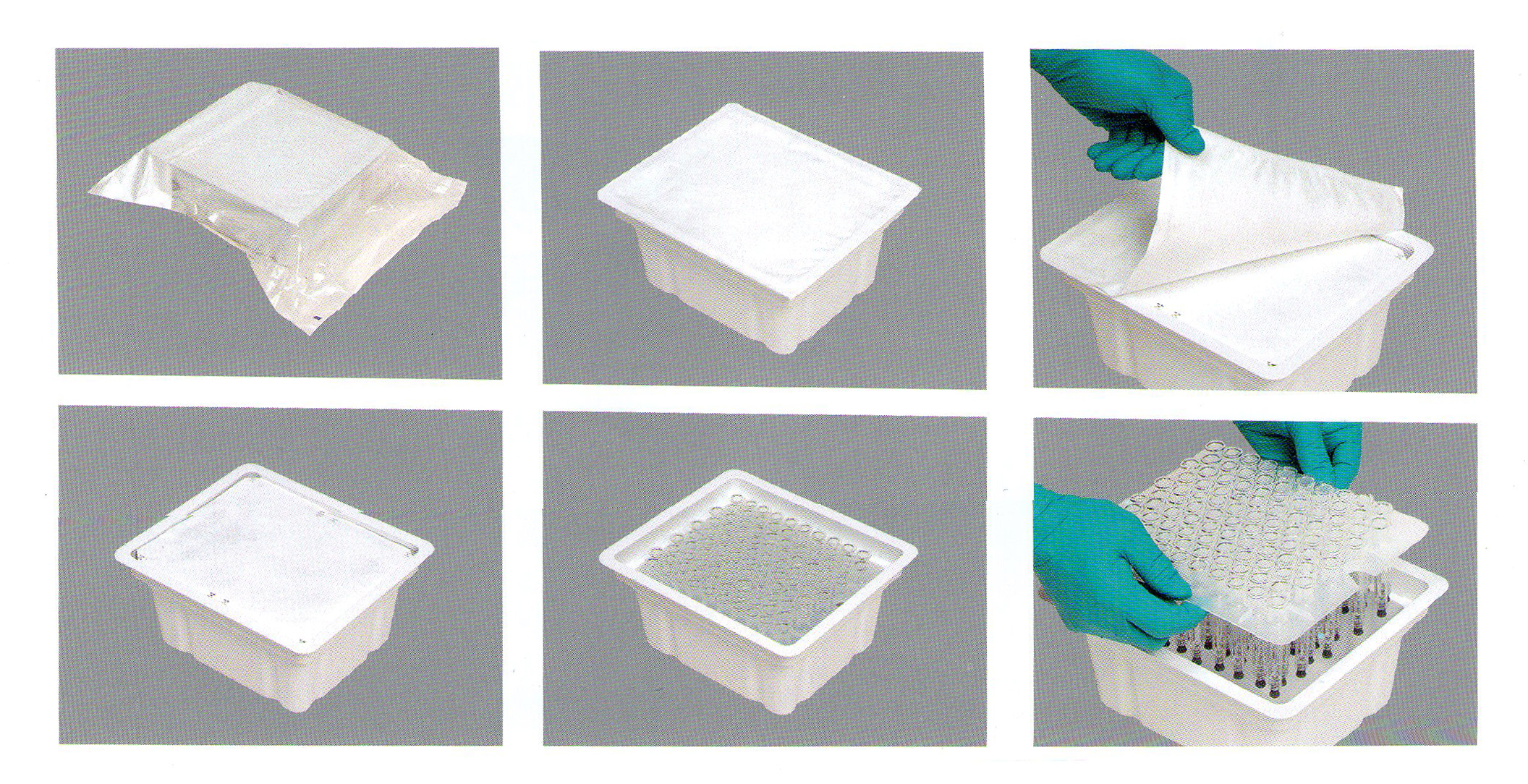

Denester to Process Nested Syringes
The aseptically filled and stoppered syringes are automatically removed from the nest and placed into a discharge track. The tub can be placed manually or automatically onto the infeed conveyor of the machine. The following process is fully automated. The empty nest is transported by means of an intermittent conveyor belt to the stacking device and automatically stacked. The tubs and nest in the stack are then manually removed. Discharge can be one or two laned.
Denester to Remove Syringes from Rondo Trays
The syringes are automatically removed from the tray and placed onto discharge track. The Rondo tray stacks are placed manually on the infeed conveyor belt of the machine. The following process is fully automated. The Rondo trays are automatically destacked. Each tray is transported past the removal station utilizing a carrier device and the syringes are removed into discharge track. The empty Rondo trays are automatically stacked and transported onto a discharge conveyor belt.

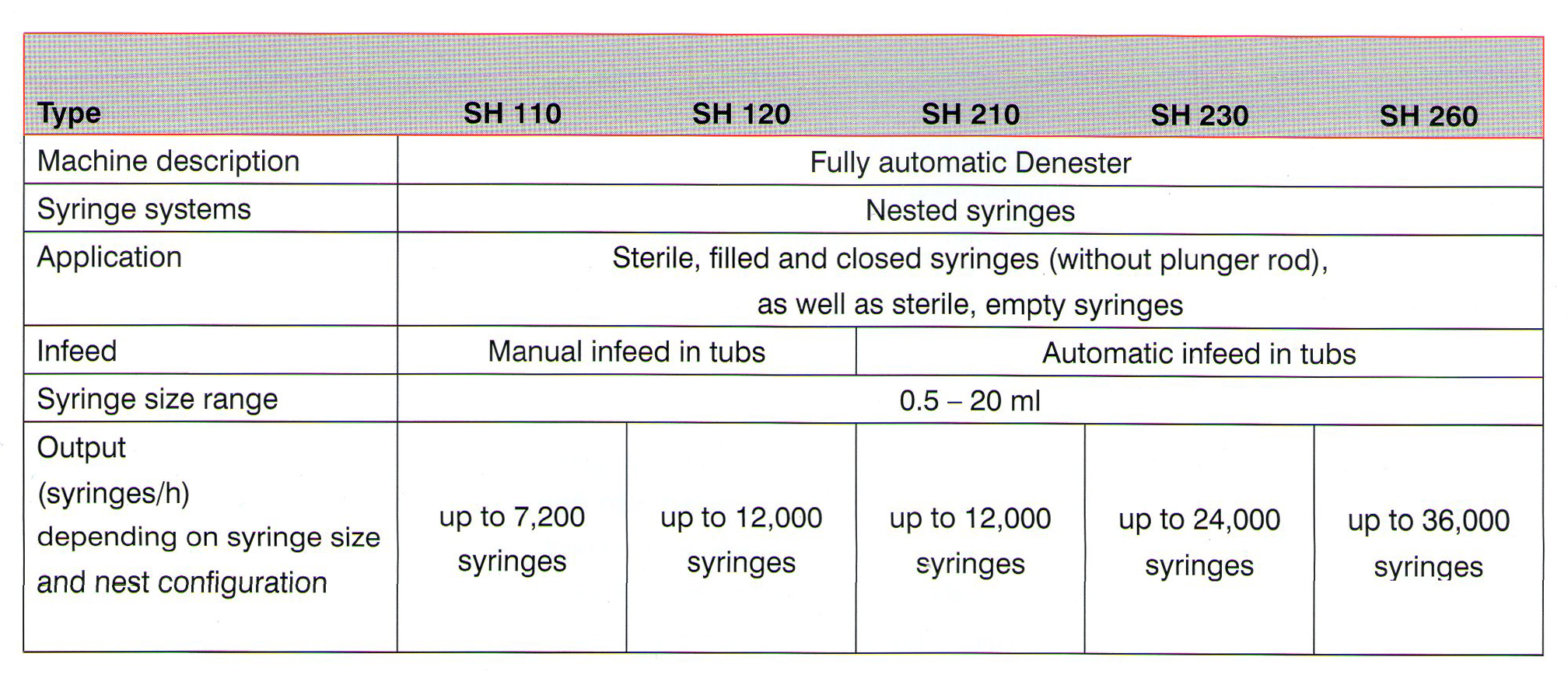

DENESTING, Technical Data Denester Tubs

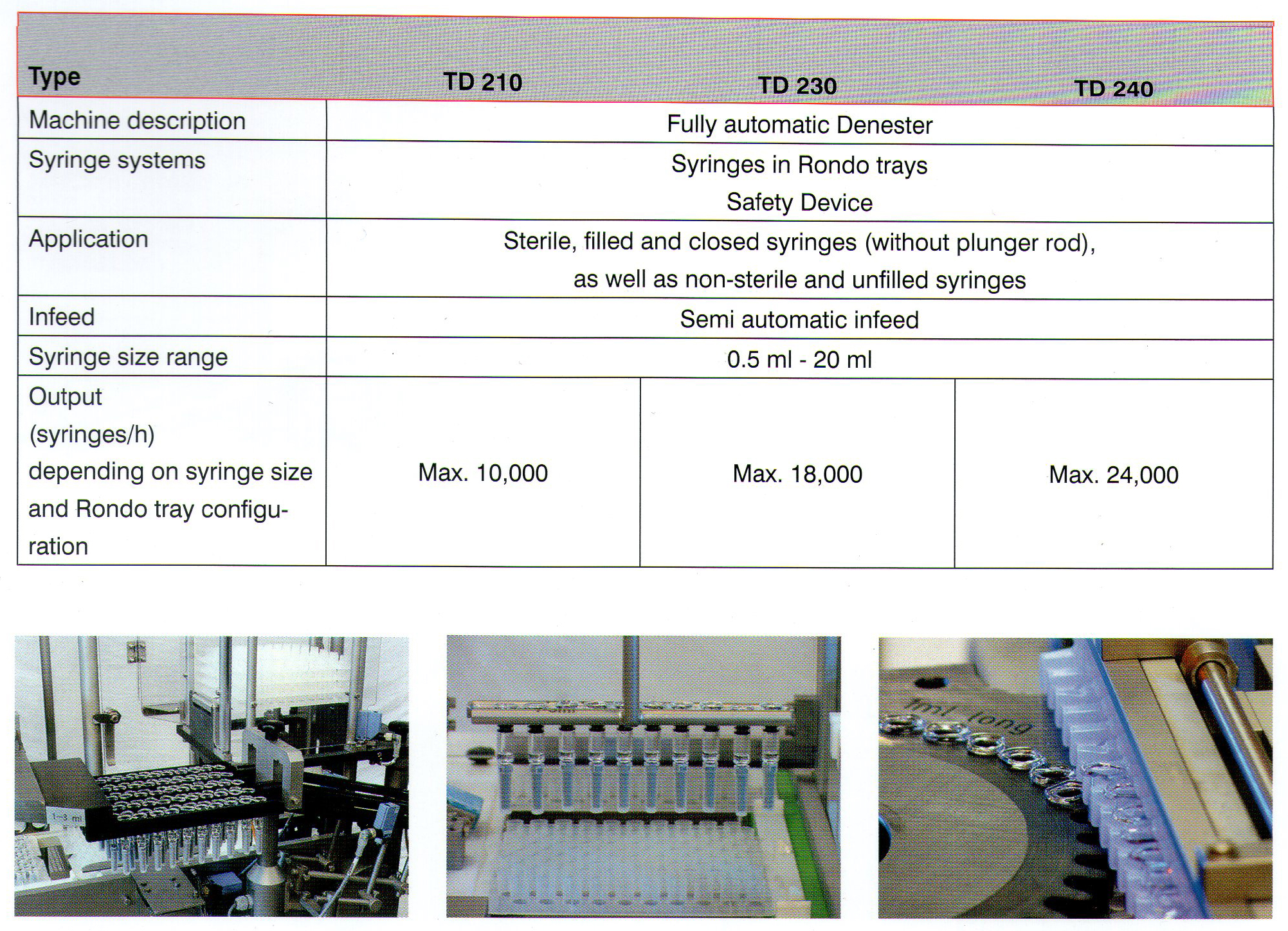

DENESTING, Technical Data Denester Rondo Trays

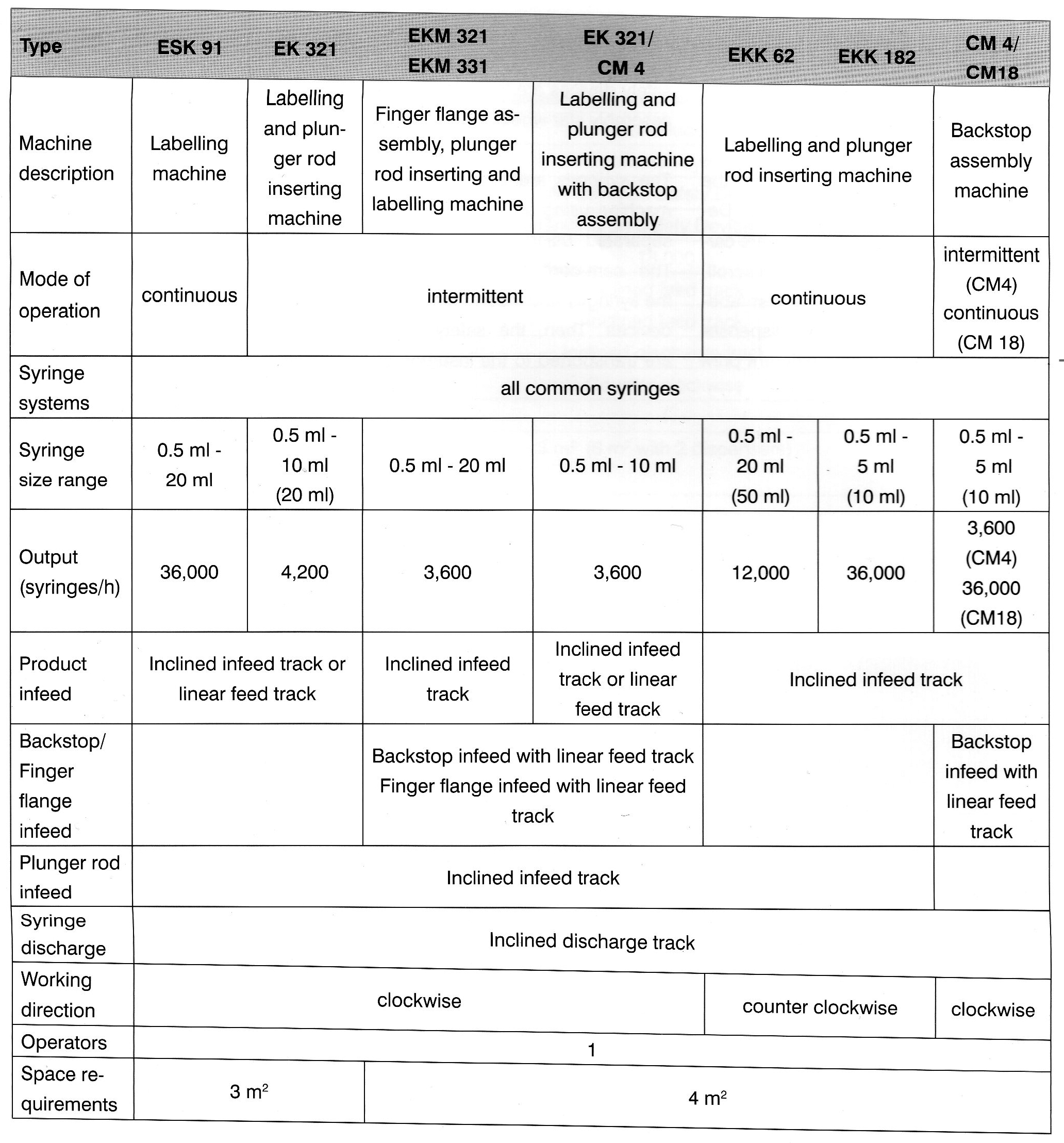

LABELLING / PLUNGER, Continuous or Intermittent
Continuous Motion Labelling Machine
The economical, compact solution for medium and large batches. This machine processes all common and glass and plastic syringes from 0.5 - 20 ml. The syringes are transported into the continous motion transport star-wheel using an inclined infeed and an infeed wheel. At the labelling station the syringes are rotated using a roller band and the labels are glued on. A luminescense scanner detects the presence of the label. On the label dispenser a camera controls the correct print of the label. Then, the syringes are distributes via two vacuum into the discharge / reject.
Intermittent Operation Labelling and Plunger Rod Inserting Machine
The economical, compact solution for small batches. This machine processes all common glass and plastic syringes from 0.5 ml 20 ml. The filled and closed syringes are transported into the transport star-wheel by means of a linear feed-track. At the inserting station the plunger rod is removed from the inclined feed-track using grippers and inserted into the rotating syringe. At the following station the assembled syringes are labelled. A luminescence scanner detects the presence of the label. Incoreectl processed syringes are rejected.
Fully Automatic Finger Flange Assembly, Plunger Rod Inserting and Labelling Machine
Three functions integrated into one machine. The machine is designed to assemble finger flanges, insert plunger rod and label all common glass and plastic syringes. Syringes size processing range: from 0.5 ml - 20 ml.
Fully Automatic Labelling and Plunger Rod Inserting Machine with Backstop Assembly
Labelling, plunger rod insertion and backstop assembly integrated into one machine. The economical compact solution for small batches. This machine processes all common glass and plastic syringes from 0.5 ml - 20 ml.
Continuous Operations Labelling and Plunger Rod Inserteing Machine
The Economical and compact solution for medium and large batches. These machines continuously process all common glass and plastic syringes.
Syringes size range:
EKK 62: from 0.5 ml - 50 ml
EKK 182: from 0.5 ml - 10 ml
BACKSTOP ASSEMBLY, Technical Data

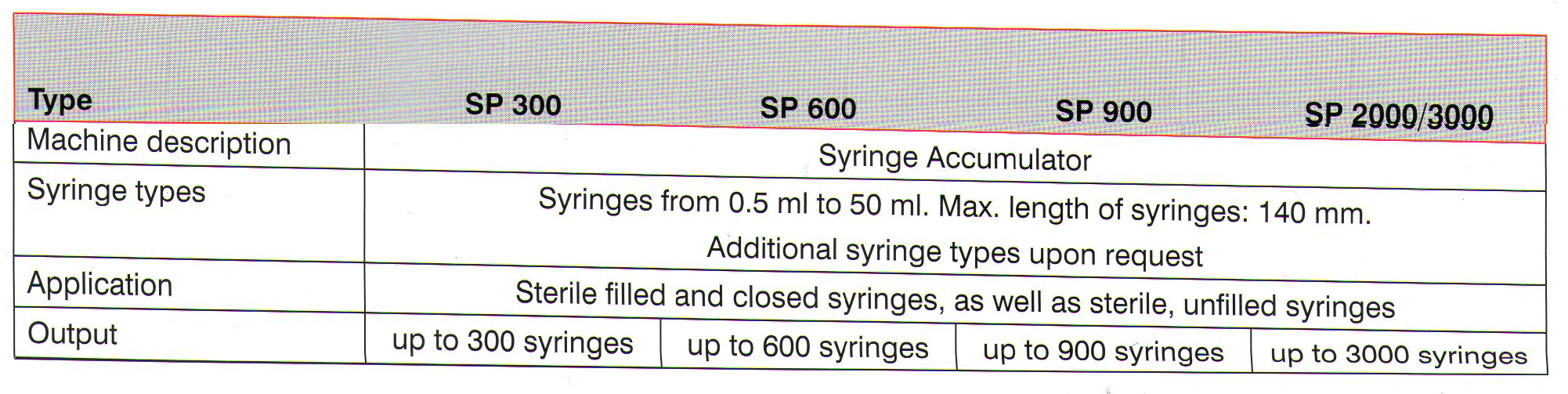

SYRINGE ACCUMULATOR, Syringe Accumulator
SP 300/600/900
Syringes are fed into a tray loading system using a star wheel. The tray is filled row by row. The nest moves perpendicular to the infeed, with the row in front of the infeed being filled before shifting to the next row. The individual lanes are filled and emptied by gravity, controlled a discharge finger and an accumulation sensor.
SP 2000/3000
Syringe Accumulation Buffer - First in - First out principle. The Syringes are fed into the accumulation racks by gravity or pushed in and out of the rack mechanically. Empty racks descend below back to the infeed.
|
