We supply maintenance-free German made split body- and fully welded ball valves ex stock at very competitive prices with fast delivery
to you, for projects and repair, as well as replacement and emergency
supply. Böhmer offers an extensive range of ball valves as per API 6D
ranging from ¼ inch to 56 inch, ASNI Class 150 to 2500 and -180°C to +650°C.

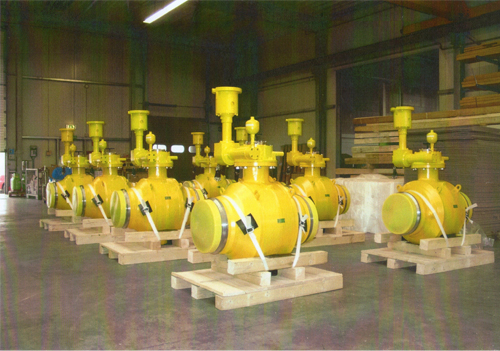

Fully Welded Ball Valves
Fully welded design
Trunnion mounted ball
Spring energized seats
Soft, metal
to metal or primary metal-secondary soft
Metal-to-metal or soft seated
Double block and bleed
Double piston system
Full or reduced bore
Flanged or welded end
Anti blow out stem
Self lubricated bearings
Removable stem seals under full line pressure in fully opened or closed position
Anti static device
In accordance with API 6D, API 6AF, BS6755 and NACE 01-75
Temperature: -50ºC - + 280ºC
Face to face dimensions are longer than the competitors valves to allow welding in fields without special restrictions
Split Body Ball Valves
Two- or
three piece split body
Spring
energized seats
Double
Block and Bleed
Self
lubricated bearings
Drain
and/or vent connections
Field
repairable
Full or
reduced bore
Flanged or
welded end
Metal to
metal- or soft seated
Trunnion
mounted ball
Anti blow
out steam
Anti static
device
Removable
stem seals under full line pressure in fully
opened or closed position
In
accordance with API 6D, API 6AF, BS6755 and NACE
01-75
Temperature: -180ºC - + 650ºC
Fields of Application
Oil-, Gas-
and Product- Pipelines
Compressor-, Measure- and
Reduction- Stations
Gas
Storages
Plants and
Vessels in the Oil-, Gas- and Petrochemical-
Industry
Liquid Gas
On-and
Offshore Platforms
Ship Building
Power
Plants
District
Heating
Solid Flow
Media
Special Applications/Tailor Made
Subsea
Other ball valve variants
Two-way ball valves with thread connections
Multi-way ball valves
Special Design
Should
you require more information please Contact
us
