Product Overview Commercial Printing Systems
|
| Series |
Pages
A4 |
Long Grain
Short Grain |
Max. Speed*
(revs/h) |
Cylinder
Circumference
(mm) |
Max.web width
(mm) |
PPL® / APL® |
Folder |
| ROTOMAN HiPrint |
16 |
lg |
55000 |
546 - 630 |
965 |
PPL |
PFC-231 |
| ROTOMAN DirectDrive |
16 |
lg |
75000 |
546 - 630 |
965 / 1000 |
PPL APL (o) |
PFC-131 PFC-132 |
| ROTOMAN S |
24 |
lg |
90000 |
546 - 630 |
1460 |
PPL |
PFC-131 PFC-252 SFF-2/DFF-2 |
| ROTOMAN S |
32 |
lg |
90000 |
546 - 620 |
1830 |
PPL |
PFC-131 PFC-252 SFF-2/DFF-2 |
| EUROMAN |
32 |
lg |
35000 |
1092 - 1260 |
965 |
PPL |
PFC-231 |
| EUROMAN |
48 |
lg |
35000 |
1092 - 1260 |
1300 |
PPL |
PFC-231 |
| LITHOMAN |
32 |
lg |
45000 |
1092 - 1260 |
965 / 1000* |
PPL APL (o) |
PFC-131 PFC-252 PFC-350 SFF-2/DFF-2 |
| LITHOMAN |
32 |
sg |
60000 |
890 - 940 |
1260 / 1320 |
PPL |
PFC-250 |
| LITHOMAN |
40 |
sg |
60000 |
890 |
1540 |
PPL |
PFC-250 |
| LITHOMAN |
48 |
lg |
45000 |
1092 - 1260 |
1460 |
PPL APL (o) |
PFC-252 PFC-350 SFF-2/DFF-2 |
| LITHOMAN S |
48 |
sg |
60000 |
890 - 900 |
1905 / 1980 |
PPL APL (o) |
PFC-250 |
| LITHOMAN |
64 |
lg |
45000 |
1092 - 1260 |
1905 |
PPL APL (o) |
PFC-252 PFC-350 SFF-2/DFF-2 |
| LITHOMAN |
72 |
lg |
45000 |
1092 - 1260 |
1980 / 2060 |
PPL APL (o) |
PFC-252 PFC-350 SFF-2/DFF-2 |
| LITHOMAN |
80 |
lg |
45000 |
1240 - 1260 |
2250 |
PPL APL (o) |
PFC-252 PFC-350 SFF-2/DFF-2 |
| LITHOMAN S |
96 |
lg |
45000 |
1140 - 1240 |
2860 |
PPL APL (o) |
PFC-252 PFC-350 SFF-2/DFF-2 |
*depending on cutoff press configuration
(o): optional
|
|
|
| |
|
Print Products of Commercial Web Systems
|
Demands :
- Systems must be designed for 24 hours/ 7 days a week production at maximum speed
- Low waste rate and maximum availability
- Process reliability with different consumables
- High and highest folding quality
- Costumised press configurations
|
|
Fundamentals of Commercial Printing
|
|

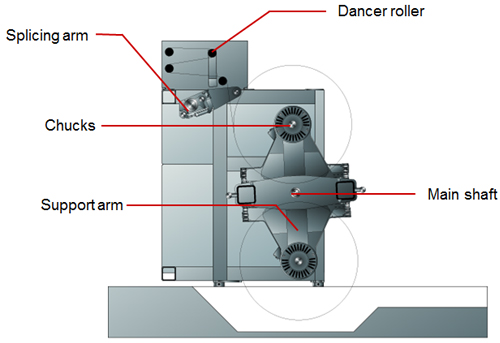

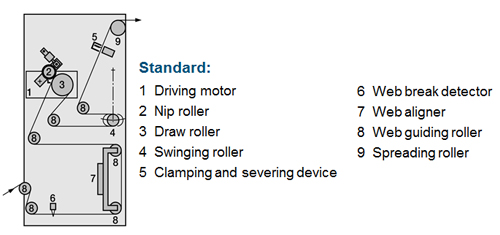

Reel Stand
|
|
|

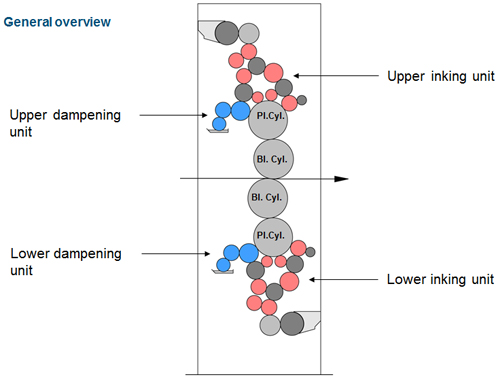

Printing Unit
|
|
|

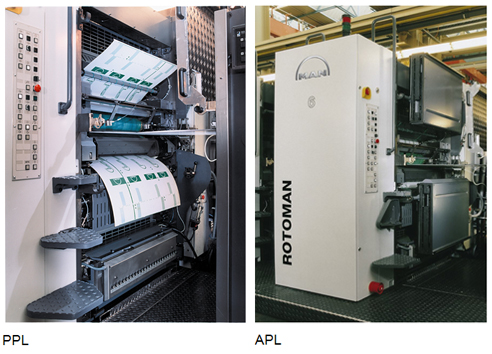

Plate Change
|
|
|

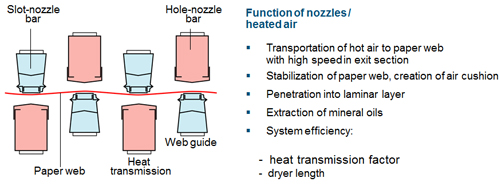

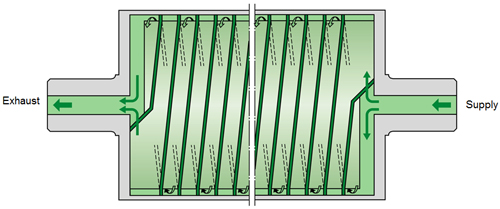

Dryer
|
|
|

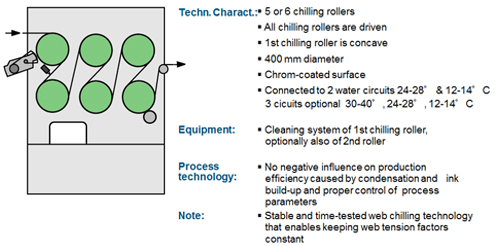

Chilling Unit
|
|
|
Folder Superstructure
|
Folder Superstructure with 2 pair of angle bars (optional)
|
|
Folder Unit
|
|
|

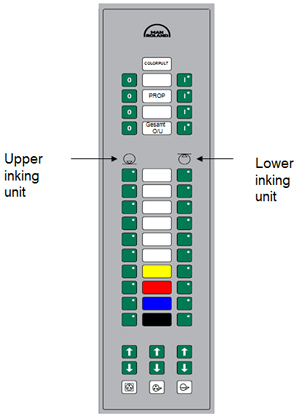

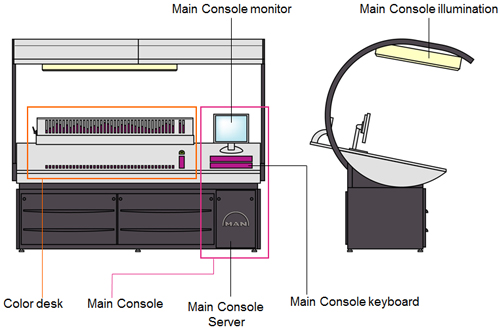

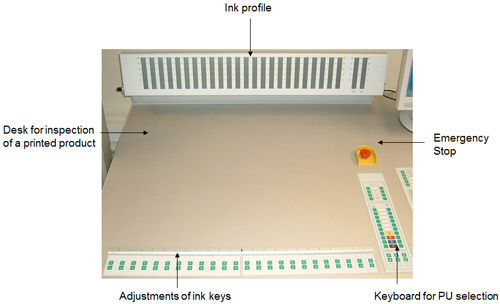

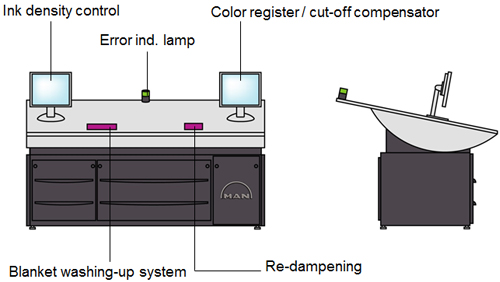

Color Desk
|
|
